The Conoid of Sturm

Function

Definition

The conoid of Sturm is the configuration of rays refracted through a toric surface. Its main elements are the 2 focal lines created by the toric lens's 2 meridians. The distance between the 2 focal lines is called the interval of Sturm. The circle of least confusion is located halfway between the 2 focal lines.

What is a toric lens?

Lenses can be of 2 broad types: spherical and astigmatic. The focusing power of a surface is created by the degree of curvature and the change in the index of refraction. A surface with equal curvature and focusing power throughout the lens is spherical. Light falling through this lens be focused in a spot of light called a focal point. On the other hand, when the curvature of the surface is unequal, with a maximum curvature in 1 orientation and a minimum curvature at an orientation that is 90° away, it creates a toric surface. The points of maximum and minimum curvature are called the 2 principal meridians of the lens. The 2 meridians each focus light in a line 90° away from the orientation of the meridian. The orientation of the focal line is the same as the axis of the power of the meridian that created the focal line. One way of looking at the axis of a refracting surface is to imagine that the meridian can rotate around the axis.

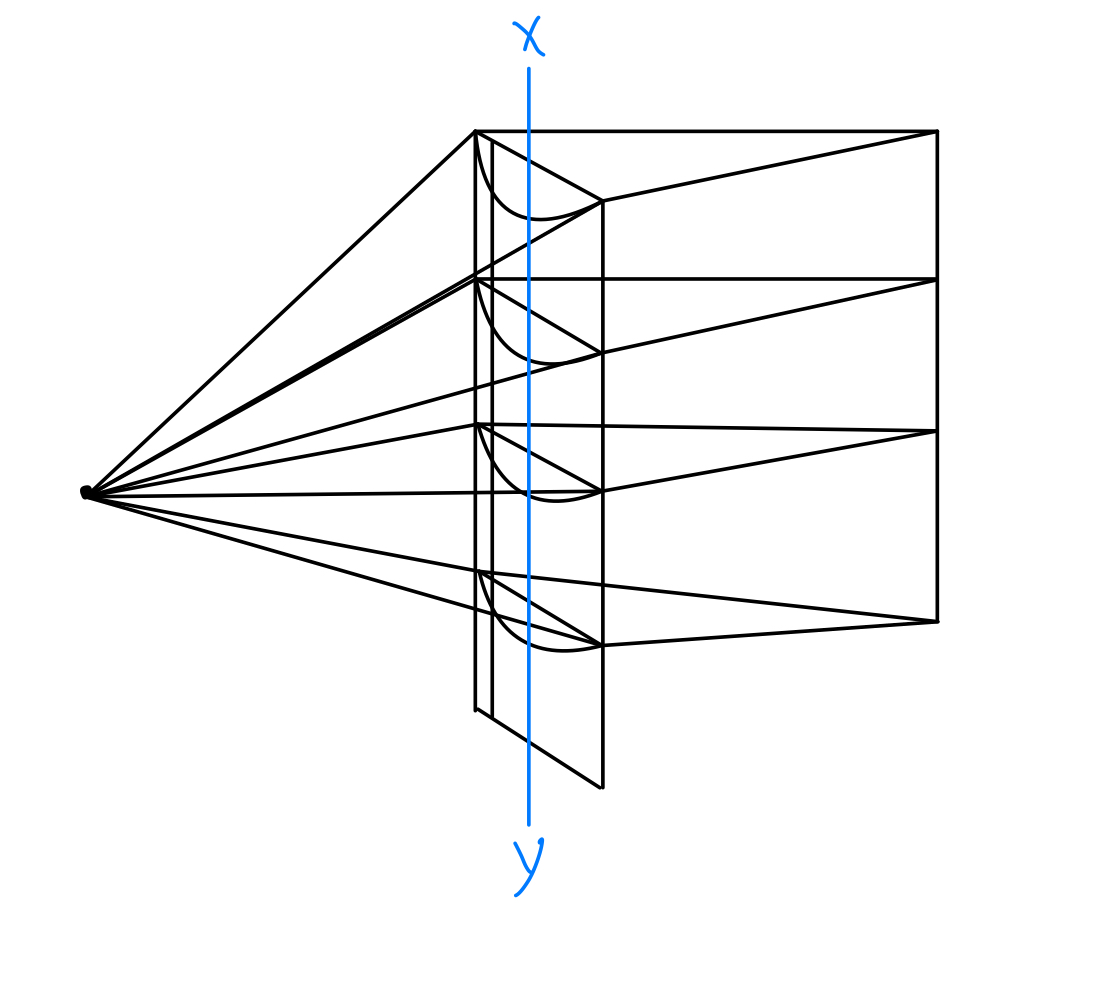

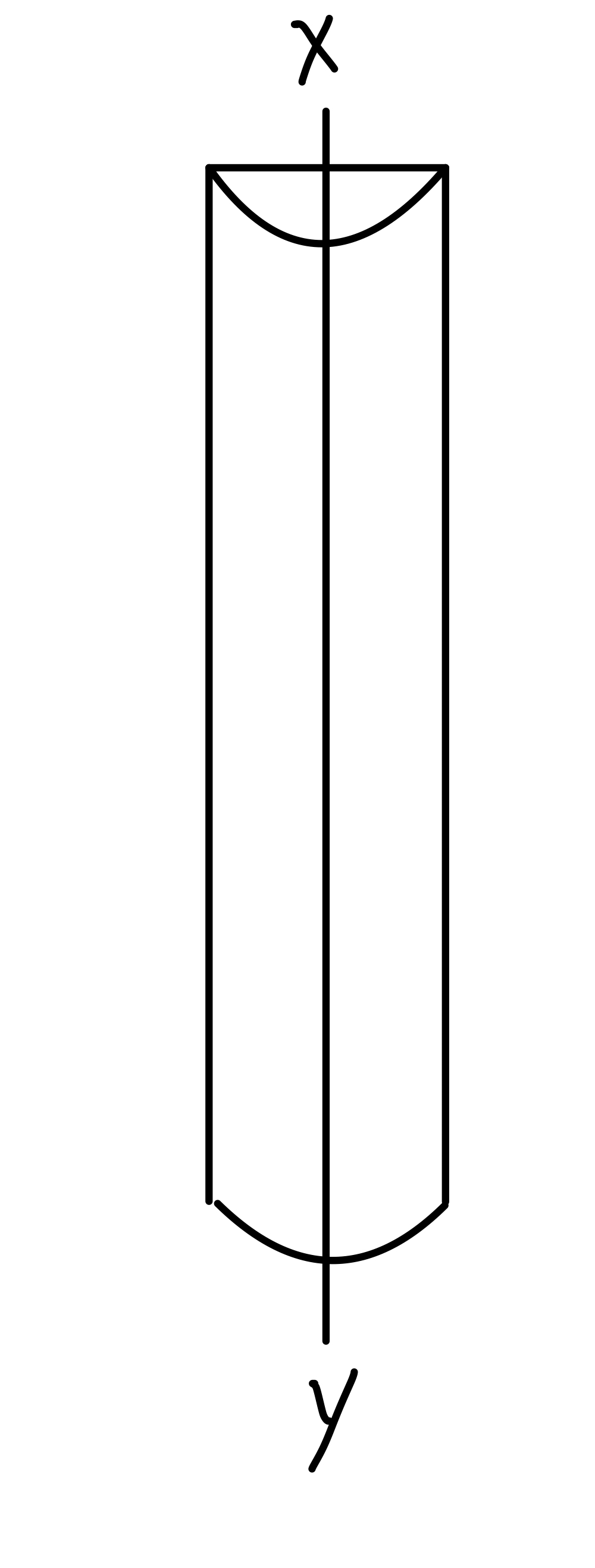

Astigmatic lenses can further be of 2 types: plano-cylindrical and sphero-cylindrical. Plano-cylindrical lenses have 1 meridian that has no focusing power (the Plano meridian) and 1 meridian that does focus light (the cylindrical meridian). The Plano meridian creates a focal line at infinity while the cylindrical component creates a focal line at a finite distance. See Figure. A Plano-cylindrical lens. Therefore, in the case of the Plano-cylindrical lens, 1 of the focal lines is at infinity, and since the circle of least confusion is halfway in between the 2 focal lines, its location is at infinity (see Figure. Refraction Through a Cylindrical Lens).[5]

In sphero-cylindrical lenses, both meridians have focusing power, creating a focal line at a finite distance. The circle of least confusion is halfway between the 2 focal lines. When a lens surface is toric, the base curve is defined as the principal meridian with the minimum curvature. This meridian forms a focal line that is farthest from the lens.

Power of a Toric Lens

Toric lenses can be represented as an optical cross or as a fraction. The optical cross format displays the focusing power (in diopters) of the 2 meridians written next to 2 perpendicular lines representing each meridian. The fraction format contains the power of 1 of the meridians as the numerator and the difference in power of the other meridian as the denominator. The numerator is the spherical power, and the denominator is the cylindrical power.

For example, if a toric lens has +4 diopter power in 1 meridian and +6 diopter power in the perpendicular meridian. This can be considered a +4 diopter spherical lens with a superimposed +2 diopter cylindrical lens. This lens could be represented as +4 DS/+2 DC. The DS designation indicates "spherical diopter," and the DC designation "cylindrical diopter."  One meridian's power is the fraction's numerator, and the other meridian's power is the sum of the numerator and the denominator.

The Spherical Equivalent of a Toric Lens

The spherical equivalent of a toric lens is its average focusing power. It is the average of the 2 meridional powers (optical cross format) or can be calculated by adding half the denominator (designated DC) to the numerator (designated DS) when using the fraction format.

For example, the spherical equivalent of the lens discussed above would be: +4 DS + 1/2(+2DC) = +4 + 1 = +5 diopter.

The position of the circle of most minor confusion of the conoid of Sturm can be found by calculating the focal distance of the spherical equivalent power of the astigmatic lens.

Issues of Concern

Refraction Through a Toric Surface

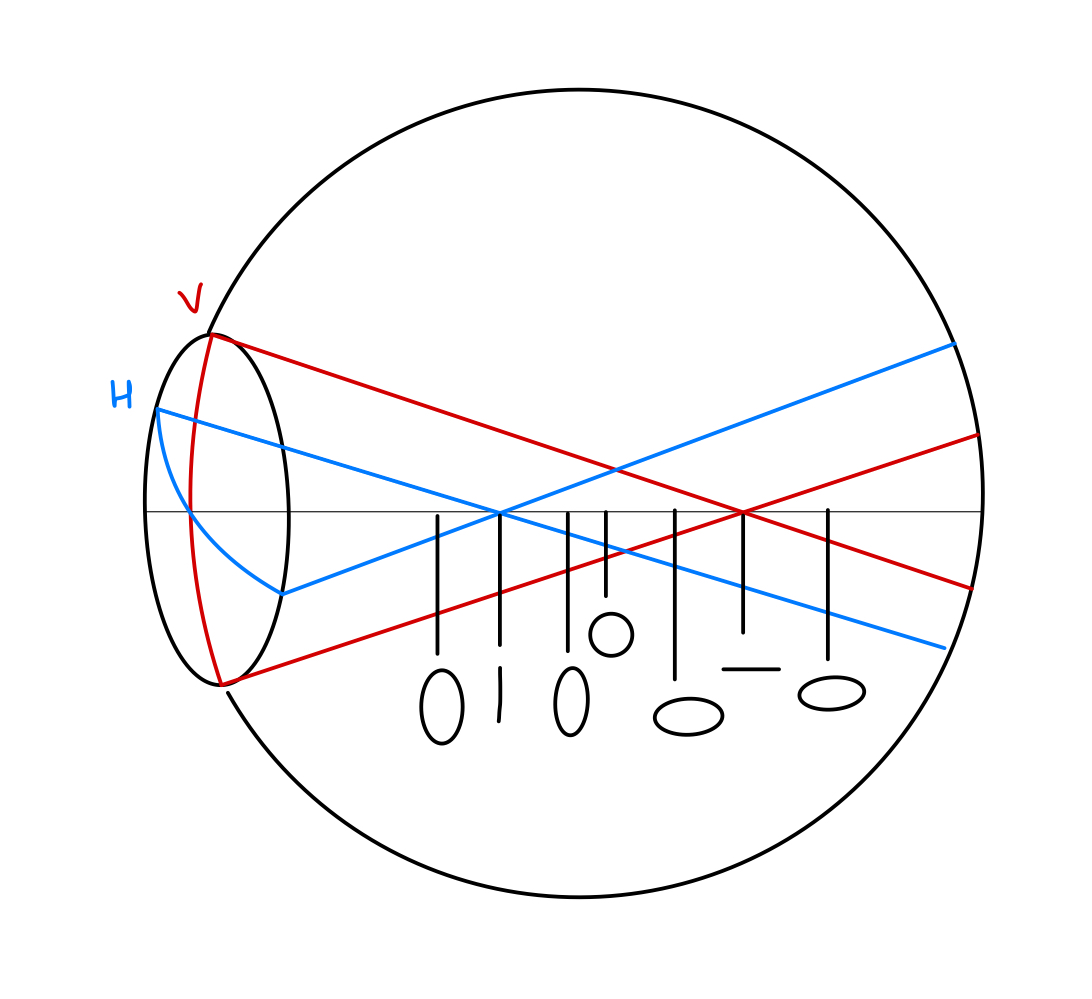

When rays of light pass through a toric surface, they undergo refraction in a configuration referred to as the conoid of Sturm. In the case of a toric surface, where the vertical meridian has a greater focusing power than the horizontal meridian, the vertical rays of light are bent more than the horizontal rays of light. These vertical rays focus at a point closer to the toric surface than the horizontal rays. Thus, 2 lines of foci are formed. The separation between these 2 focal lines is referred to as the focal interval of Sturm. If a screen is placed at any point other than these 2 focal lines, the image formed on the screen is a circle or an oval with varying dimensions.

Light images can be recorded at different points within and outside the conoid of Sturm (see Figure. Conoid of Sturm):

• At A, the vertical rays are more converging (as the vertical meridian is more curved) than the horizontal rays. The more converging the rays are, the smaller the image produced by them. The image obtained is an oval with the vertical diameter being smaller than the horizontal diameter, ie, a horizontal oval ellipse.
• At B, the vertical rays are converged to focus while the horizontal rays are still converging. A horizontal line is formed.
• At C, the vertical rays now start diverging while the horizontal rays are still converging. The amount of divergence of the vertical rays is less than the convergence of the horizontal rays. The image obtained is again a horizontal oval/ oblate ellipse.
• At D, The vertical rays are diverging and horizontal rays are converging. The amount of diverging by vertical rays equals the amount of convergence by the horizontal rays. The image obtained is a perfect circle called the circle of most minor confusion. This is sometimes called the circle of least diffusion.
• At E, the vertical rays are diverging and horizontal rays are converging. The amount of divergence by the vertical rays is more than the amount of convergence by the horizontal rays. The image formed is a vertical oval ellipse.
• At F, The vertical rays are diverging, but the horizontal rays come to focus. The image formed is a vertical line.
• At G, The vertical rays and horizontal rays are diverging. The amount of divergence of the vertical rays is more than the divergence of the horizontal rays. The image obtained is a vertical oval ellipse.

Clinical Significance

The most important application of the conoid of Sturm is the optics and management of astigmatism.

Optics of Astigmatism and The Conoid of Sturm

The same concept can be applied to an eye. In the case of astigmatism, the horizontal and vertical meridians of the eye have different powers. Thus, it becomes a toric surface. The refraction through an astigmatic eye is configured as the conoid of Sturm. See Figure. Against-the-Rule Astigmatism, and Conoid of Sturm. As the light from infinity does not form a point of focus on the retina, the image is distorted.

Types of Astigmatism and The Conoid of Sturm

Astigmatism can be divided into 2 types: regular and irregular. Irregular astigmatism is when the power changes non-uniformly from 1 meridian to another. In this type of astigmatism, the 2 principal meridians may not be at a perpendicular orientation. This type of astigmatism cannot be corrected with spectacles lenses.[6] Irregular astigmatism has a variety of causes:

• Irregular corneal surface
  • Pterygium [7]
  • Keratoconus [8]
  • Corneal ulcers [9]
  • Dry eye [10]
  • Corneal dystrophyies [11]
  • Corneal scarring [12]
• Postoperative causes
  • after cataract surgery [13]
  • after scleral buckling surgery [14]
  • after trabeculectomy [15]
  • after LASIK [16]
  • after vitrectomy [17]
• Crystalline lens
  • Cataract
  • Posterior lenticonus [18]

Regular astigmatism is when there is a regular change in power between the 2 principal meridians. Regular astigmatism can be further classified in the following ways:

• Based on etiology:
  • Corneal astigmatism [19]
  • Lenticular astigmatism
    • Curvature – Due to congenital abnormalities of the curvature of the lens (for example, lenticonus)
    • Positional – tilting of the lens [20]
    • Index – due to variable refractive indices within the lens
  • Retinal astigmatism - rare and postulated to be formed by unequal meridional lengthening of the sclera within the macula [21]
• Based on the axis and the position of the axes:
  • With-the-rule astigmatism: The 2 principal meridians are placed at right angles. The vertical meridian is more curved than the horizontal meridian (which is in accordance with the regular curvature of the cornea. Normally, the vertical meridian of the cornea is steeper than the horizontal meridian due to pressure from the eyelid, hence the name). When light rays from infinity pass through such a system, the rays in the vertical meridian converge more than those in the horizontal meridian, forming the conoid of Sturm. See Figure. Against-the-Rule Astigmatism, and Conoid of Sturm.
  • Against-the-rule astigmatism: The 2 principal meridians are placed at right angles. The horizontal meridian is more curved than the vertical meridian. When light rays from infinity pass through such a system, the rays in the horizontal meridian converge more than those in the vertical meridian, forming the conoid of Sturm (see Figure. Against-the-Rule Astigmatism).
  • Oblique astigmatism: The 2 principal meridians are placed at right angles but not in a horizontal/vertical orientation.
  • Bio-oblique astigmatism: The 2 principal meridians are not at right angles.
• Based on the position of the focal lines with respect to the retina:
  • Simple astigmatism: The rays of light from 1 meridian focus on the retina, while the rays in the other meridian focus either in front (simple myopic astigmatism) or behind the retina (simple hypermetropic astigmatism). See Figure. Simple Myopic Astigmatism.
  • Compound astigmatism: The rays of light from both meridians focus either in front of (compound myopic astigmatism) or behind the retina (compound hypermetropic astigmatism)
  • Mixed astigmatism: The rays of light from 1 meridian focus in front of the retina, and the rays in the other meridian focus behind the retina. [22]

Optical Correction of Astigmatism and the Conoid of Sturm

The endpoint of refraction in astigmatism is:

• To ensure that the circle of least confusion falls on the retina: When the circle of least confusion falls on the retina, the image seen has the least distortion and creates the least perception of blur. To do this, we need to correct astigmatism with a lens with a spherical equivalent equal to the refractive error of the eye and off opposite power. For example, see Figure. Refraction through a cylindrical lens.
• To collapse the interval of Sturm: The smaller the circle of least confusion, the clearer the image. But the image is not a point; rather, it is a circle. Therefore, even when the circle of least confusion lies on the retina, the vision is suboptimal. To optimize vision, we need to collapse the conoid of Sturm onto the retina so that the pair of focal lines reduces to a single focal point. This requires using cylindrical lenses to neutralize the error in each meridian. See Figure. Refraction through a cylindrical lens.

Other Issues

Another application of the conoid of Sturm is the Jackson cross cylinder used in refraction.[23] The Jackson cross cylinder consists of a toric lens mounted on a handle. The meridians of the Jackson cross cylindrical lens have dioptrical powers that are equal but opposite. For example:

• +1 DS/-2DC
• +1 vertical meridian/-1 horizontal meridian

Therefore, the spherical equivalent of the Jackson cross cylinder is zero. This implies that it does not move the circle of least diffusion when kept in front of an astigmatic eye. It is used to collapse or elongate the conoid of Sturm, which can refine the power and axis of the cylindrical lens prescribed to a patient.

Enhancing Healthcare Team Outcomes

Managing astigmatism requires an interprofessional team of healthcare professionals, including optometrists, nurses, ophthalmologists, ophthalmic technicians, and opticians. When a patient walks into the clinic, the nurse and the doctor are responsible for taking a thorough history and a complete ophthalmic examination. It includes the following:

• History – Habitual squinting is an attempt to reduce the size of the circle of most minor confusion on the retina. A history of amblyopia, corneal disease, or cataracts can cause astigmatism. A family history of keratoconus or certain corneal dystrophies can increase the suspicion of astigmatism.
• Visual acuity – Distant vision, near vision. A report of letters appearing "3-dimensional" or with an associated shadow is indicative of astigmatism and, in essence, a description of the image formed at different locations along the conoid of Sturm.
• Refraction – Subjective and objective. An awareness of the need for objective refractive findings such as autorefraction or retinoscopy is essential, as subjective refraction is often difficult in patients with higher amounts of astigmatism.
• Intraocular pressure measurement
• Anterior segment examination. The main causes of astigmatism are the cornea and the crystalline lens.
• Fundus examination. This part of the exam helps rule out posterior segment causes of blurred vision and eliminate the rare occurrence of retinal astigmatisms, which can, in theory, be caused by a retinal staphyloma or other types of scleral distortion.

Additional testing may be indicated:

• Rigid gas permeable contact lens over-refraction. This test allows the neutralization of corneal astigmatism.
• Corneal topography or keratometry. This test may allow the clinician to detect astigmatism and determine whether it is of the regular or irregular type.

If an organic cause is found, it must be treated accordingly. If not, the patient must be offered optical correction through spectacles or contact lenses. If they fit the criteria, they must also be offered refractive surgery. Regular follow-up visits to check for compliance and progression are equally important in managing astigmatism.
